AIR COMPRESSOR
Dryer Oil Free Screw Air Compressor
Engineered for industries requiring 100% oil-free and moisture-free compressed air, PRS Compressor’s Dryer Oil Free Screw Air Compressors deliver superior performance with integrated air drying technology. These systems ensure clean, contaminant-free air ideal for pharmaceuticals, food processing, electronics, and medical applications. With advanced twin-screw technology and a built-in air dryer, they offer energy efficiency, quiet operation, and continuous duty performance.
Working Power: 4 kW to 250 kW | 5.3 HP to 335 HP
Working Pressure: 7 bar to 13 bar | 102 psi to 189 psi
Air Delivery / Capacity: 0.5 to 45 m³/min | 17.6 to 1589 CFM

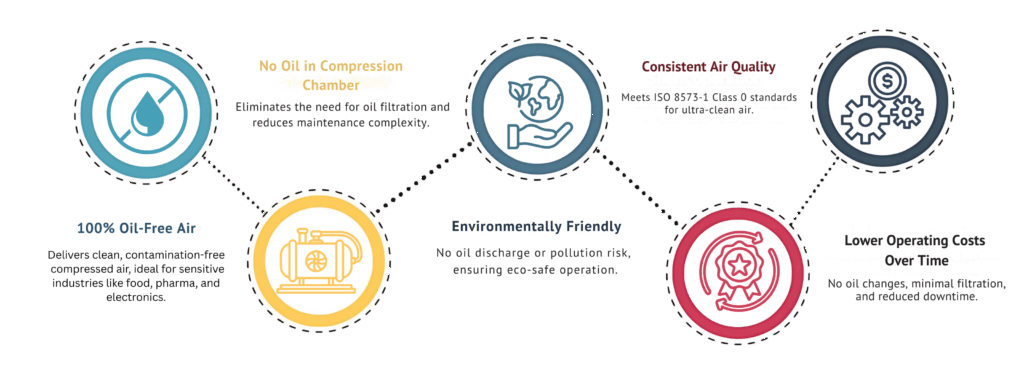

Key Benefits of Dryer Oil-Free Screw Air Compressors
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
Dryer Oil Free Screw Air Compressor parameters
Comprehensive technical specifications for compact, efficient, and reliable performance.
| Model Name | Power (kW) | RPM min | Free Air Delivery CFM (m3/min)/Mpa |
Noise (db) | Machine Dimensions (mm) | Weight (Kg) | Air Outlet (Inch/mm) |
|---|---|---|---|---|---|---|---|
| PRS - 10D | 7.5D | 4000 | 41.2 / 1.3 39.6 / 1.5 36.6 / 1.6 | 62±2 | 890 x 630 x 985 | 240 | G 3/4" |
| PRS - 15D | 11 | 2900 | 61.8 / 1.3 58.9 / 1.5 54.1 / 1.6 | 62±2 | 940 x 705 x 1120 | 320 | G 1" |
| PRS - 20D | 15 | 2900 | 81.9 / 1.3 76.5 / 1.5 72.6 / 1.6 | 62±2 | 940 x 705 x 1120 | 330 | G 1" |
| PRS - 25D | 18.5 | 2900 | 105.9 / 1.3 98.8 / 1.5 92.4 / 1.6 | 62±2 | 1030 x 785 x 1250 | 450 | G 1" |
| PRS - 30D | 22 | 2900 | 120.1 / 1.3 110.6 / 1.5 102.4 / 1.6 | 62±2 | 1030 x 785 x 1250 | 500 | G 1 1/4" |
| PRS - 40D | 30 | 2900 | 156.8 / 1.3 148.3 / 1.5 138.1 / 1.6 | 63±2 | 1150 x 850 x 1330 | 510 | G 1 1/4" |
| PRS - 50D | 37 | 2900 | 194.8 / 1.3 182.4 / 1.5 171.3 / 1.6 | 63±2 | 1150 x 850 x 1330 | 560 | G 1 1/2" |
| PRS - 60D | 45 | 2900 | 229.4 / 1.3 212.4 / 1.5 200.6 / 1.6 | 63±2 | 1260 x 960 x 1450 | 680 | G 1 1/2" |
| PRS - 75D | 55 | 2900 | 265.9 / 1.3 248.3 / 1.5 232.4 / 1.6 | 63±2 | 1600 x 1050 x 1750 | 1110 | G 2" |
| PRS - 100D | 75 | 2900 | 353.0 / 1.3 324.7 / 1.5 306.0 / 1.6 | 64±2 | 1645 x 1120 x 1800 | 1550 | G 2" |
| PRS - 120D | 90 | 2900 | 424.7 / 1.3 395.3 / 1.5 366.5 / 1.6 | 64±2 | 1800 x 1180 x 1850 | 1850 | DN65 |
| PRS - 150D | 110 | 2900 | 494.1 / 1.3 460.0 / 1.5 423.5 / 1.6 | 66±2 | 2050 x 1350 x 1900 | 2200 | DN65 |
| PRS - 175D | 132 | 2900 | 570.6 / 1.3 531.8 / 1.5 489.4 / 1.6 | 66±2 | 2260 x 1450 x 1900 | 2800 | DN65 |
| PRS - 200D | 160 | 2900 | 666.2 / 1.3 618.8 / 1.5 572.2 / 1.6 | 72±2 | 2720 x 1750 x 2152 | 3300 | DN65 |
