SCREW AIR COMPRESSOR

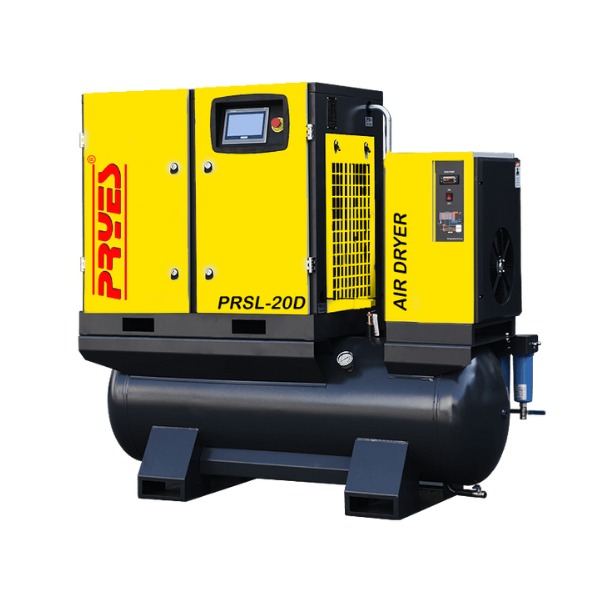

High Pressure Screw Air Compressor 7.5KW – 37KW
High Pressure Screw Air Compressors are engineered to deliver reliable and efficient compressed air at elevated pressures for demanding industrial applications. Designed with robust components, precision engineering, and high-efficiency motors, these compressors ensure stable performance and long service life. Ideal for PET bottle blowing, laser cutting, and other high-pressure operations.
Motor Power: 7.5KW to 37KW(10HP to 50HP)
Working Pressure: Upto 16Bar to 20Bar (1.6Mpa to 2.0Mpa)
Free Air Delivery (FAD): 1.13 – 3.68 m³/min (40 to 130CFM )
Â
Key Advantages of PRYES Low Pressure Screw Compressors
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
High Pressure Screw Air Compressor Parameters Table
Comprehensive technical specifications for compact, efficient, and reliable performance.
| Model | PRSI-7.5F | PRSI-11F | PRSI-15F | PRSI-22F |
|---|---|---|---|---|
| Motor | Power(kw) 7.5 |
11 | 15 | 22 |
| Horsepower(hp) 10 |
15 | 20 | 30 | |
| Air displacement/ Working pressure (M³/Min./MPa) |
1.1 / 0.8 | 1.75 / 0.8 | 2.44 / 0.8 | 3.6 / 0.8 |
| 0.97 / 1.0 | 1.65 / 1.0 | 2.2 / 1.0 | 3.2 / 1.0 | |
| 0.63 / 1.3 | 1.1 / 1.3 | 1.87 / 1.3 | 2.6 / 1.3 | |
| Air outlet diameter | G3/4 | G3/4 | G3/4 | G1 |
| Lubricating oil volume (L) | 10 | 16 | 16 | 16 |
| Noise level dB(A) | 60±2 | 62±2 | 62±2 | 65±2 |
| Driven method | Direct drive / Belt drive | Direct drive / Belt drive | Direct drive / Belt drive | Direct drive / Belt drive |
| Start method | Y-â–³ | Y-â–³ | Y-â–³ | Y-â–³ |
| External dimensions | Length (mm) 1560 |
1770 | 1770 | 2200 |
| Width (mm) 710 |
750 | 750 | 1030 | |
| Height (mm) 1450 |
1610 | 1610 | 1820 | |
| Weight (kg) | 370 | 550 | 550 | 900 |
| Gas tank capacity (L) | 285 | 325 | 325 | 800 |
| Model | PRSI-7.5V | PRSI-11V | PRSI-15V | PRSI-22V |
|---|---|---|---|---|
| Motor | Power (kw) 7.5 |
11 | 15 | 30 |
| Horsepower (hp) 10 |
15 | 20 | 30 | |
| Air displacement / Working pressure (M³/Min./MPa) |
0.49-1.1 / 0.8 | 0.78-1.75 / 0.8 | 1.1-2.44 / 0.8 | 1.62-3.6 / 0.8 |
| 0.4-0.9 / 1.0 | 0.74-1.65 / 1.0 | 0.99-2.2 / 1.0 | 1.44-3.2 / 1.0 | |
| 0.28-0.63 / 1.3 | 0.39-0.88 / 1.3 | 0.84-1.87 / 1.3 | 1.03-2.4 / 1.3 | |
| Air outlet diameter | G3/4 | G3/4 | G3/4 | G1 |
| Lubricating oil volume (L) | 10 | 16 | 16 | 20 |
| Noise level dB(A) | 60±2 | 62±2 | 62±2 | 65±2 |
| Driven method | Direct drive | Direct drive | Direct drive | Direct drive |
| Start method | PM VSD | PM VSD | PM VSD | PM VSD |
| External dimensions | Length (mm) 1560 |
1770 | 1770 | 2200 |
| Width (mm) 710 |
750 | 750 | 1030 | |
| Height (mm) 1450 |
1610 | 1610 | 1820 | |
| Weight (kg) | 370 | 550 | 550 | 900 |
| Gas tank capacity (L) | 285 | 325 | 325 | 800 |
