SCREW AIR COMPRESSOR
Single Stage Screw Air Compressor 4KW – 250KW
Single Stage Screw Air Compressors are designed for efficient and continuous operation across a wide range of industrial applications. With a simple yet powerful design, they deliver stable airflow at medium pressure levels, making them ideal for general manufacturing, automotive, textile, and assembly operations. Built with high-grade components and precision rotors, they ensure low maintenance and long-term reliability.
Motor Power: 4 kW to 250 kW (5.3 HP to 335 HP)
Working Pressure: 7 bar to 10 bar (102 psi to 145 psi)
Free Air Delivery (FAD): 0.5 to 45 m³/min (17.6 to 1589 CFM)
Â

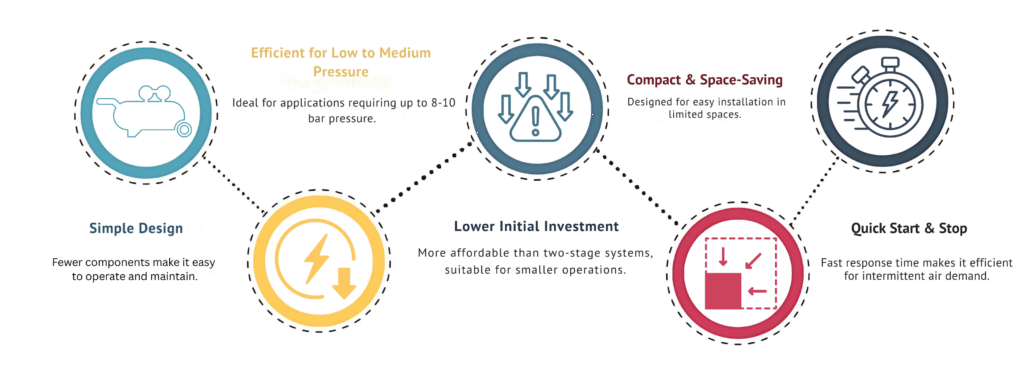

Why Choose PRYES Single Stage Screw Air Compressors?
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
Single Stage Screw Air Compressor Parameters Table
Comprehensive technical specifications for compact, efficient, and reliable performance.
| Model | Power (kW) | Power (HP) | Capacity (m³/min) | Working Pressure (bar) | Air outlet diameter | Noise level dB(A) | Driven mode | Start method | External dimensions (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PRS-7.5F | 7.5 | 10 | 0.93 / 1.09 | 8 / 10 | DN20 | 60±2 | Direct drive | Y-△ | 950*670*930 | 203 |
| PRS-11F | 11 | 15 | 1.48 / 1.65 | 8 / 10 | DN25 | 60±2 | Direct drive | Y-△ | 1090*700*985 | 307 |
| PRS-15F | 15 | 20 | 1.96 / 2.24 | 8 / 10 | DN25 | 60±2 | Direct drive | Y-△ | 1090*700*985 | 317 |
| PRS-18.5F | 18.5 | 25 | 2.62 / 3.00 | 8 / 10 | DN25 | 64±2 | Direct drive | Y-△ | 1330*900*1170 | 470 |
| PRS-22F | 22 | 30 | 3.00 / 3.36 | 8 / 10 | DN25 | 64±2 | Direct drive | Y-△ | 1330*900*1170 | 470 |
| PRS-30F | 30 | 40 | 4.30 / 5.00 | 8 / 10 | DN40 | 64±2 | Direct drive | Y-△ | 1330*900*1275 | 635 |
| PRS-37F | 37 | 50 | 5.00 / 5.80 | 8 / 10 | DN40 | 64±2 | Direct drive | Y-△ | 1350*900*1275 | 685 |
| PRS-45F | 45 | 60 | 6.20 / 7.20 | 8 / 10 | DN40 | 64±2 | Direct drive | Y-△ | 1510*970*1325 | 885 |
| PRS-55F | 55 | 75 | 7.13 / 8.27 | 8 / 10 | DN50 | 64±2 | Direct drive | Y-△ | 1910*1220*1450 | 1160 |
| PRS-75F | 75 | 100 | 9.60 / 11.0 | 8 / 10 | DN60 | 64±2 | Direct drive | Y-△ | 1910*1220*1450 | 1365 |
| PRS-90F | 90 | 120 | 11.5 / 13.2 | 8 / 10 | DN60 | 70±2 | Direct drive | Y-△ | 2460*1470*1600 | 1715 |
| PRS-110F | 110 | 150 | 13.6 / 15.5 | 8 / 10 | DN60 | 70±2 | Direct drive | Y-△ | 2460*1470*1600 | 2106 |
| PRS-132F | 132 | 175 | 16.7 / 19.0 | 8 / 10 | DN60 | 70±2 | Direct drive | Y-△ | 2460*1470*1600 | 2341 |
| PRS-160F | 160 | 215 | 20.3 / 23.0 | 8 / 10 | DN65 | 75±3 | Direct drive | Y-△ | 2960*1970*1800 | 2920 |
| PRS-185F | 185 | 250 | 23.0 / 26.5 | 8 / 10 | DN65 | 75±3 | Direct drive | Y-△ | 3110*1970*1900 | 3300 |
| PRS-220F | 220 | 300 | 26.3 / 30.0 | 8 / 10 | DN80 | 75±3 | Direct drive | Y-△ | 3110*1970*1900 | 4080 |
| PRS-250F | 250 | 335 | 31.6 / 34.6 | 8 / 10 | DN100 | 78±3 | Direct drive | Y-△ | 4175*2200*2450 | 4460 |
