SCREW AIR COMPRESSOR

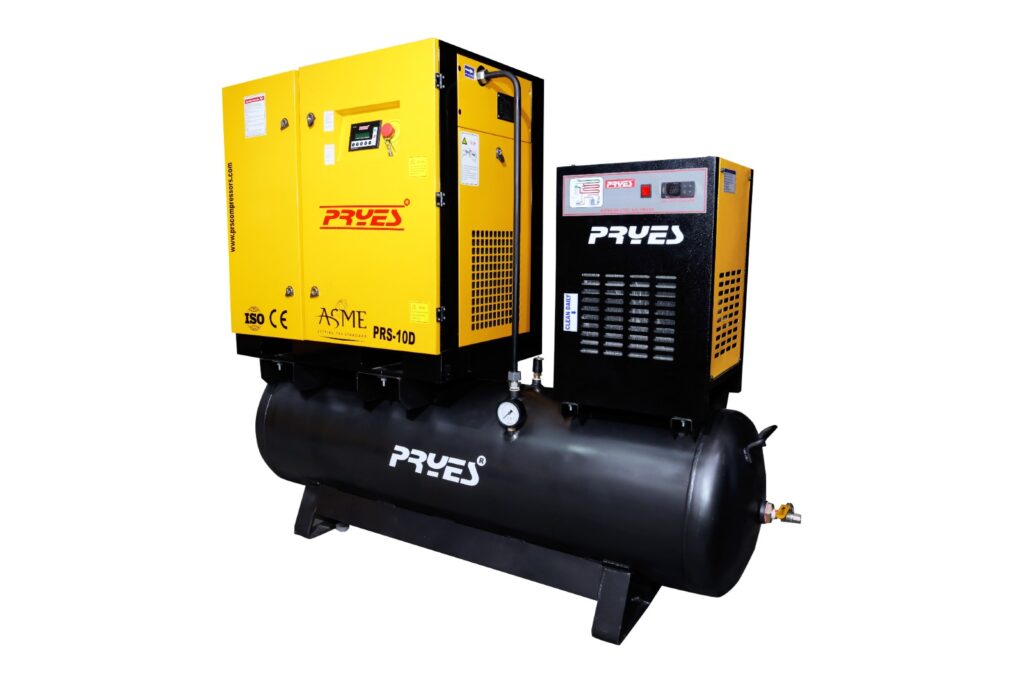

Tank Mounted Screw Air Compressor 4KW – 15KW
Compact and efficient screw compressors with an integrated tank design, providing reliable and continuous air output for diverse industrial applications.Engineered for durability and energy savings, these compressors optimize performance while minimizing maintenance.
Working Power: 4KW to 15KW | 5HP to 20HPÂ
Working Pressure:6Bar to 16Bar | 0.6Mpa to 1.6Mpa
Capacity :0.42 to 2.26 m³/min | 14 to 80 CFM
Â

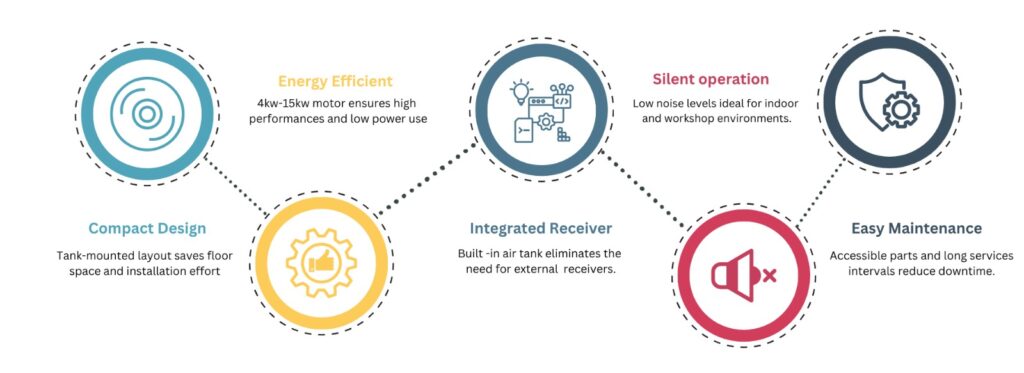

Tank Mounted Screw Air Compressor Advantages
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
Tank Mounted Screw Air Compressor (4KW - 15KW) – Parameters Table
Comprehensive technical specifications for compact, efficient, and reliable performance.
| MACHINE MODEL | PRS-4D | PRS-7D | PRS-10D | PRS-15D | PRS-20D |
|---|---|---|---|---|---|
| COOLING TYPE | AIR COOLING | ||||
| WORKING PRESSURE / CFM | 7 Bar (100PSI) - 18 8 Bar (115PSI) - 16 10 Bar (145PSI) - 13 12 Bar (175PSI) - 11 |
7 Bar (100PSI) - 22 8 Bar (115PSI) - 20 10 Bar (145PSI) - 18 12 Bar (175PSI) - 14 |
7 Bar (100PSI) - 45.92 8 Bar (115PSI) - 38.85 10 Bar (145PSI) - 33.55 12 Bar (175PSI) - 30.37 |
7 Bar (100PSI) - 65.34 8 Bar (115PSI) - 57.21 10 Bar (145PSI) - 49.44 12 Bar (175PSI) - 46.26 |
7 Bar (100PSI) - 91.83 8 Bar (115PSI) - 88.3 10 Bar (145PSI) - 77.7 12 Bar (175PSI) - 56.86 |
| POWER (Kw) | 4 | 5.5 | 7.5 | 11 | 15 |
| STARTING METHOD | PRS-4D, PRS-7D, PRS-10D – DELTA OR FREQUENCY CONVERSION | PRS-15D, PRS-20D – STAR-DELTA OR FREQUENCY CONVERSION | |||
| VOLTAGE / FREQUENCY (V/Hz) | 220V/50Hz 415V/50Hz | 415V/50Hz | 415V, 50Hz | ||
| PROTECTION LEVEL | IP23 / IP54 / IP55 | IP23 / IP54 / IP55 | IP 55 | ||
| INSULATION CLASS | F Class | ||||
| MOTOR EFFICIENCY | IE2 / IE3 / IE4 | IE2 / IE3 / IE4 | IE3 & IE4 | ||
| DRIVEN METHOD | Direct Driven | ||||
| NOISE (DB) | 62±2 | ||||
| OIL CARRYOVER (PPM) | ≤3 | ||||
| DISCHARGE TEMP (°C) | ≤ Ambient Temperature +15°C | ||||
| LUBRICANT CAPACITY (L) | 7 | 10 | 12 | ||
| TANK VOLUME (L) | 300 L | 500 L | 500 L | ||
| EXTERNAL DIMENSION – LENGTH (mm) | 2150 | 2150 | 2150 | ||
| EXTERNAL DIMENSION – WIDTH (mm) | 730 | 750 | 750 | ||
| EXTERNAL DIMENSION – HEIGHT (mm) | 1540 | 1850 | 1850 | ||
| WEIGHT (Kg) | 525 | 710 | 740 | ||
| OUTLET (Inch) | 3/4" | 1" | 1" | ||
