AIR COMPRESSOR
Two Stage Screw Air Compressor 22KW – 250KW
Two Stage Screw Air Compressors are built for high-efficiency, continuous-duty performance in demanding industrial environments. With dual compression stages, they deliver higher pressure output with reduced energy consumption and lower discharge temperatures. Ideal for applications requiring sustained high pressure, these compressors ensure long-term reliability, improved air quality, and superior cost savings.
Motor Power: 22 kW to 250 kW (30 HP to 335 HP)
Working Pressure: 13 bar to 40 bar (189 psi to 580 psi)
Free Air Delivery (FAD): 2.5 to 42 m³/min (88 to 1483 CFM)
Â

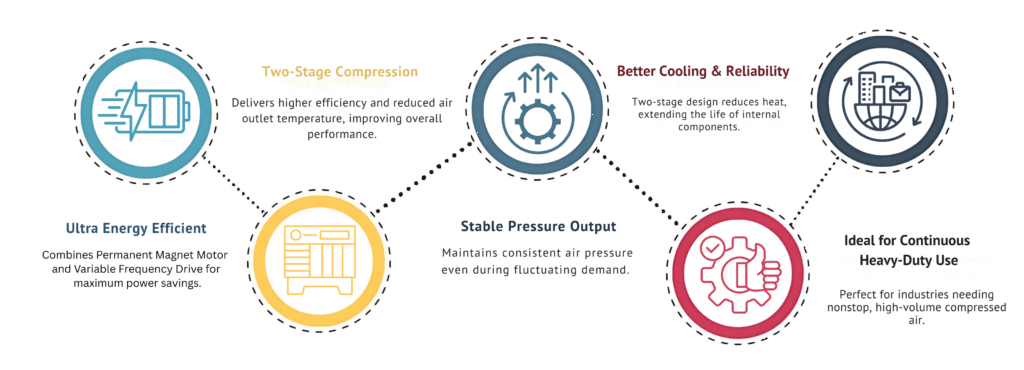

Why Choose PRYES Two Stage Screw Air Compressor ?
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
Two Stage Screw Air Compressor Parameters Table
Comprehensive technical specifications for compact, efficient, and reliable performance.
| MACHINE MODEL | PRS-10D | PRS-15D | PRS-20D |
|---|---|---|---|
| COOLING TYPE | AIR COOLING | ||
| WORKING PRESSURE / CFM |
7 Bar (100PSI) - 45.92 8 Bar (115PSI) - 38.85 10 Bar (145PSI) - 33.55 12 Bar (175PSI) - 30.37 |
7 Bar (100PSI) - 65.34 8 Bar (115PSI) - 57.21 10 Bar (145PSI) - 49.44 12 Bar (175PSI) - 46.26 |
7 Bar (100PSI) - 91.83 8 Bar (115PSI) - 88.3 10 Bar (145PSI) - 77.7 12 Bar (175PSI) - 56.86 |
| POWER (Kw) | 7.5 | 11 | 15 |
| STARTING METHOD | STAR-DELTA OR FREQUENCY CONVERSION | ||
| VOLTAGE / FREQUENCY (V/Hz) | 415V, 50Hz | ||
| PROTECTION LEVEL | IP 55 | ||
| INSULATION CLASS | F Class | ||
| MOTOR EFFICIENCY | IE3 & IE4 | ||
| DRIVEN METHOD | Direct Driven | ||
| NOISE (DB) | 62±2 | ||
| OIL CARRYOVER (PPM) | ≤3 | ||
| DISCHARGE TEMP (°C) | ≤ Ambient Temperature +15°C | ||
| LUBRICANT CAPACITY (LITRES) | 7 | 10 | 12 |
| TANK VOLUME (L) | 300 L | 500 L | 500 L |
| EXTERNAL DIMENSION (mm) | 2150×730×1540 | 2150×750×1850 | 2150×750×1850 |
| WEIGHT (Kg) | 525 | 710 | 740 |
| OUTLET (Inch) | 3/4" | 1" | 1" |
