AIR COMPRESSOR
Water Lubricated Oil Free Screw Air Compressor
PRS Compressor’s Water Lubricated Oil Free Screw Air Compressors are designed for industries that demand clean, oil-free air with an eco-friendly approach. Using water as the sealing, cooling, and lubricating medium, these compressors eliminate the risk of oil contamination while delivering high-efficiency performance. Ideal for applications in pharmaceuticals, food and beverage, electronics, and healthcare, they ensure consistent air quality with minimal maintenance.
Working Power: 4 kW to 250 kW | 5.3 HP to 335 HP
Working Pressure: 7 bar to 13 bar | 102 psi to 189 psi
Air Delivery / Capacity: 0.5 to 45 m³/min | 17.6 to 1589 CFM

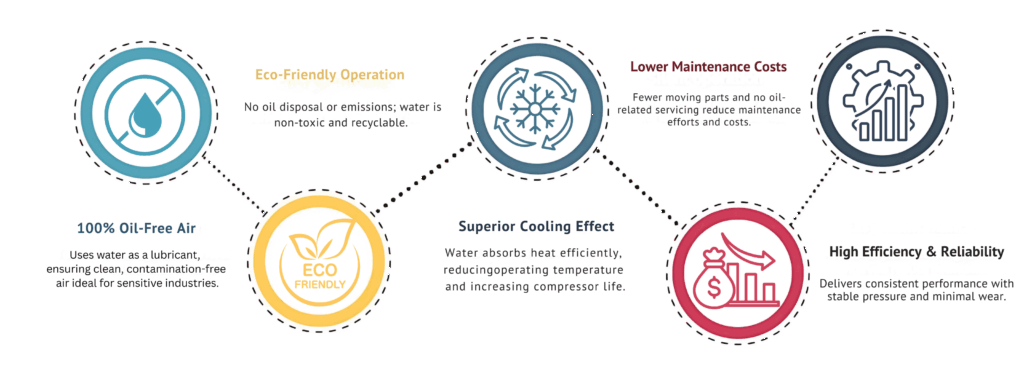

Top Features of PRS Water-Lubricated Oil-Free Compressors
Delivers efficient, space-saving performance with integrated storage for continuous, reliable air supply.
Water Lubricated Oil Free Screw Air Compressor parameters
Comprehensive technical specifications for compact, efficient, and reliable performance.
| Model | Working Pressure (bar) | Capacity (m³/min) | Power (kw) | Noise dB(A) | Weight (kg) | Dimension (mm) | Air Outlet |
|---|---|---|---|---|---|---|---|
| PRSOF-5.5VW | 8 10 12.5 | 0.3-0.76 0.3-0.70 0.3-0.60 | 5.5 | 65 | 460 | 800×850×1200 | 3/4" |
| PRSOF-7VW | 8 10 12.5 | 0.3-1.05 0.3-1.0 0.3-0.85 | 7.5 | 65 | 510 | 800×850×1200 | 3/4" |
| PRSOF-11VW | 8 10 12.5 | 0.6-1.55 0.6-1.45 0.6-1.30 | 11 | 66 | 630 | 1150×785×1340 | 1" |
| PRSOF-15VW | 8 10 12.5 | 0.6-2.30 0.6-2.10 0.6-1.85 | 15 | 66 | 680 | 1150×785×1340 | 1" |
| PRSOF-18.5VW | 8 10 12.5 | 0.6-3.20 0.6-3.0 0.6-2.7 | 18.5 | 66 | 750 | 1400×900×1450 | 1" |
| PRSOF-22VW | 8 10 12.5 | 0.6-3.60 0.6-3.30 0.6-3.0 | 22 | 66 | 820 | 1400×900×1450 | 1" |
| PRSOF-30VW | 8 10 12.5 | 1.25-5.3 1.25-4.9 1.25-4.6 | 30 | 67 | 1100 | 1500×1050×1500 | 1¼" |
| PRSOF-37VW | 8 10 12.5 | 1.40-6.50 1.40-6.0 1.40-5.5 | 37 | 67 | 1150 | 1500×1050×1500 | 1¼" |
| PRSOF-45VW | 8 10 12.5 | 2.30-7.55 2.30-7.0 2.30-6.2 | 45 | 68 | 1600 | 1750×1250×1650 | 2" |
| PRSOF-55VW | 8 10 12.5 | 2.30-9.65 2.30-9.0 2.30-8.10 | 55 | 70 | 1800 | 2000×1250×1650 | 2" |
| PRSOF-75VW | 8 10 12.5 | 3.10-13.30 3.10-12.0 3.10-11.0 | 75 | 73 | 2100 | 2200×1350×1750 | 2½" |
| PRSOF-90VW | 8 10 12.5 | 4.70-15.0 4.70-13.0 4.70-12.0 | 90 | 73 | 2500 | 2200×1350×1750 | 2½" |
| PRSOF-110VW | 8 10 12.5 | 4.70-19.5 4.70-17.0 4.70-15.0 | 110 | 74 | 2800 | 2500×1500×1900 | 2½" |
| PRSOF-132VW | 8 10 12.5 | 6.25-23.5 6.25-21.0 6.25-19.0 | 132 | 75 | 3100 | 2700×1800×2250 | DN80 |
| PRSOF-160VW | 8 10 12.5 | 6.25-27.0 6.25-24.0 6.25-22.0 | 160 | 75 | 3800 | 2700×1800×2250 | DN80 |
| PRSOF-185VW | 8 10 12.5 | 9.35-31.0 9.35-27.5 9.35-25.5 | 185 | 75 | 4000 | 2700×1800×2250 | DN100 |
| PRSOF-200VW | 8 10 12.5 | 9.35-33.0 9.35-29.5 9.35-27.0 | 200 | 75 | 4200 | 2700×1800×2250 | DN100 |
| PRSOF-220VW | 8 10 12.5 | 11.0-35.0 11.0-32.0 11.0-29.0 | 220 | 75 | 4500 | 2700×1800×2250 | DN100 |
