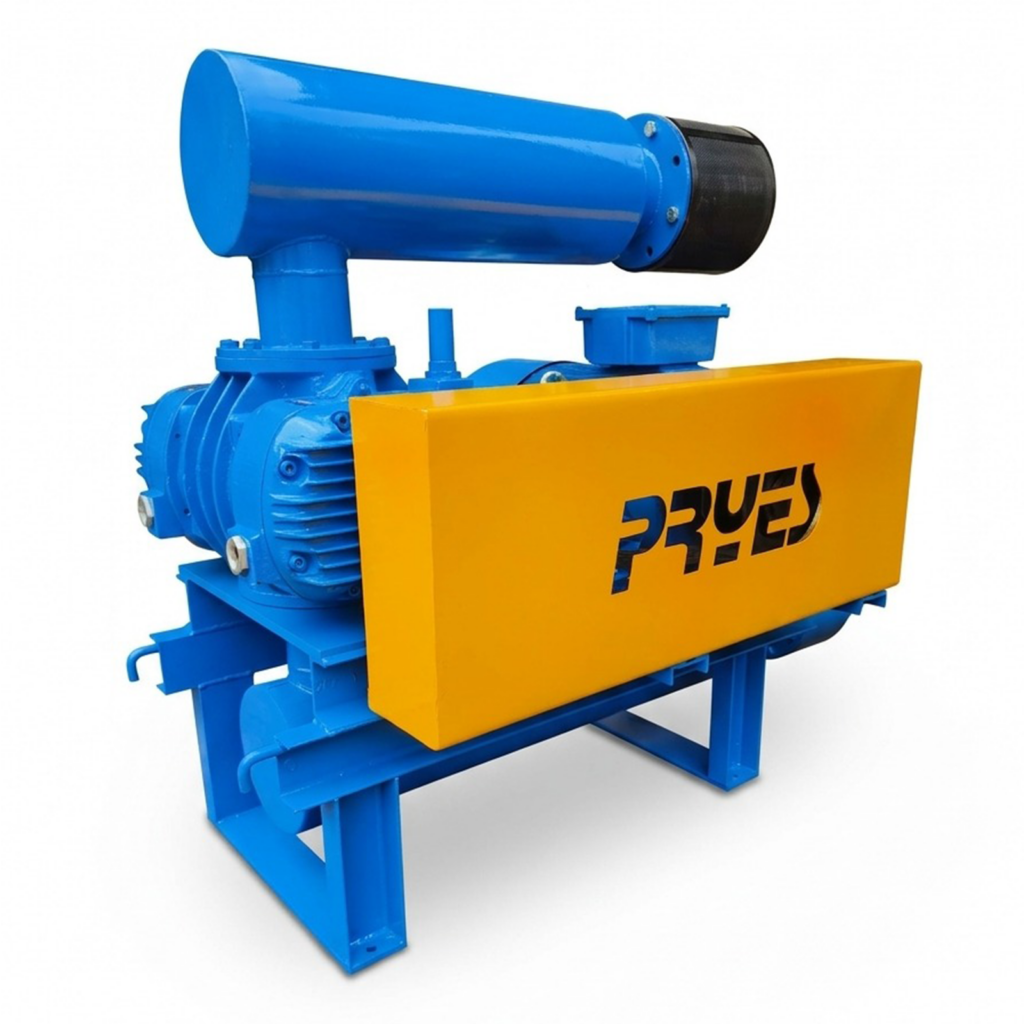

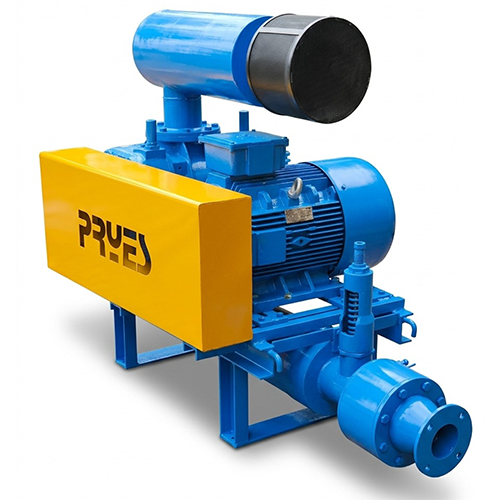

Twin Lobe Blower
The PRS Compressors Twin Lobe Roots Blower is a high-performance positive displacement blower engineered for dependable industrial applications. It features precision-designed twin-lobe impellers mounted on parallel shafts, rotating in opposite directions within a robust, sealed casing. This design enables smooth air transfer from inlet to outlet, where pressure is generated by system back pressure, ensuring a steady and consistent airflow without internal compression.To maintain accurate synchronization, the blower is equipped with hardened alloy steel timing gears that allow the rotors to operate without contact
In modern industries, efficient air movement plays a vital role in maintaining seamless operations. The Twin Lobe Roots Blower from PRS Compressors delivers a consistent, oil-free air supply, making it a trusted solution across a wide range of industrial applications.
Features
100% oil-free air delivery, Factory engineered, Factory guaranteed, superior product – All major components are interchangeable.
Scope of Supply
Twin Lobe Roots Blowers
What Are Twin Lobe Roots Blowers?
PRS Compressors Twin Lobe Roots Blowers, also referred to as Roots-type positive displacement blowers, are engineered to deliver a consistent volume of air across varying pressure conditions. Unlike centrifugal fans or dynamic blowers that depend on air velocity for compression, these blowers operate on the principle of positive displacement. They capture a fixed quantity of air and transfer it from the suction side to the discharge side with precision.
This operating mechanism ensures:
- Uniform and steady airflow
- Consistent pressure output
- Clean, oil-free air delivery
Because of these advantages, PRS Compressors Twin Lobe Roots Blowers are widely used in industries where stable, continuous, and contamination-free airflow is critical for efficient operations.
Working Principle of a Twin Lobe Roots Air Blower
Understanding how a twin lobe roots air blower works helps in appreciating its reliability. Here’s a step-by-step breakdown:
Air Intake
Air is drawn into the blower through the suction side of the housing, initiating the airflow process.
Air Trapping
A pair of symmetrical rotors rotates in opposite directions, trapping a volume of air between the lobes & the casing.
Air Transfer
With continuous rotation, the lobes transport the trapped air around the casing to the discharge side.
Air Discharge
Air is released in a steady, constant volume, with the operating pressure governed by system back pressure.
This straightforward yet highly efficient mechanism operates without internal compression, reducing wear and ensuring minimal maintenance requirements while supporting long-term performance.
With precise mechanical synchronization achieved through hardened timing gears, the PRS Compressors Twin Lobe Roots Blower delivers smooth, contact-free operation. The absence of metal-to-metal contact significantly enhances durability, making it a reliable and efficient solution for demanding industrial applications.
Twin Lobe Roots Blowers vs Other Blower Technologies
To make an informed decision, twin lobe roots blowers should be compared with alternative technologies such as centrifugal systems and screw compressors
| Feature | Twin Lobe Roots Blower | Centrifugal Blower | Screw Compressor |
|---|---|---|---|
|
Principle |
Positive displacement |
Dynamic |
Rotary compression |
|
Flow Delivery |
Constant |
Variable |
Variable |
|
Oil-Free Air |
Yes |
Usually Yes |
Often requires filtration |
|
Maintenance |
Low |
Medium |
High |
|
Pressure Range |
Up to 1 bar |
Up to 0.5 bar |
Up to 15 bar |
|
Efficiency |
High at low/medium pressure |
Drops with load |
High but expensive |
|
Ideal Use |
Aeration, conveying, vacuum |
Cooling, ventilation |
High-pressure air systems |
In short, Twin Lobe Roots Blowers dominate in low-to-medium pressure industrial applications, offering consistent performance, cost-effectiveness, and easy maintenance.
Twin Lobe Roots Blowers by PRS Blowers – High-Performance Industrial Air Handling Solutions
As one of the leading twin lobe roots blower manufacturers in Tamilnadu, India, PRS Blowers has set a benchmark in delivering superior air handling systems designed for reliability, performance, and durability. Whether you’re running a wastewater treatment plant, pneumatic conveying system, or chemical processing unit, PRS Twin Lobe Roots Air Blowers provide the efficiency and dependability your operation demands.
Water Lubricated Oil Free Screw Air Compressors
PRS Water-Lubricated Oil Free Screw Compressors ensure pure, oil-free air using water as a natural sealant—eco-friendly, efficient, and ideal for sensitive industries.
Oil Free Scroll Compressors
PRS Oil Free Scroll Compressors offer ultra-clean, silent, and efficient air solutions ideal for precision industries like medical, dental, and electronics.
Benefits of Twin Lobe Roots Blowers in Industrial Applications:-
Choosing a Twin Lobe Roots Blower from PRS Blowers brings measurable operational advantages:
100% Oil-Free Air
Perfect for sensitive applications like food processing, or wastewater aeration
Low Maintenance
No internal friction means fewer part replacements and longer service intervals.
High Efficiency
Optimized design reduces power consumption and operational costs
Consistent Airflow
Delivers steady volume irrespective of pressure fluctuations
Versatile Mounting
Available in both horizontal and vertical configurations.
Durability
Constructed with heavy-duty materials and precision-balanced components.
Quiet and Stable Operation
Dynamic balancing minimizes vibration and noise.
Some of the common usage of these Roots Blowers is as follows:
- Pneumatic Conveying System
- Sewage Treatment Plants
- Central Vacuum-Cleaning System
- Aeration in Storage silos
- Charging of Kilns in Cement and Steel Plants
- Blending
- Effluent Treatment Plants
- Dewatering and Air Drying
- Water Treatment Plants
- Mechanical Vapor Recompression (MVR Blower)
Industries Served with Roots Blower
